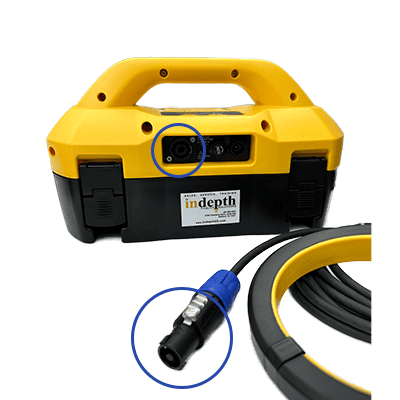

Blue Plug Transmitter Connection Illustration

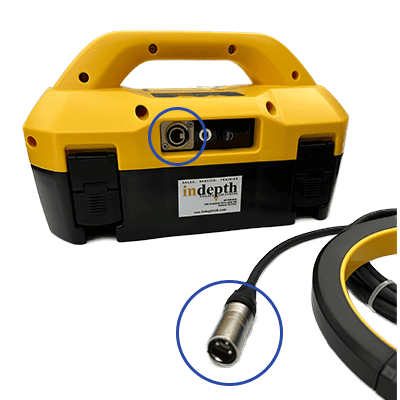

3-Pin Loc3 Transmitter Connector Illustration
Download technical docs:
1. Choose Your Variation
$385.00 – $995.00
Related Accessories
Product Description
Overview:
The Vivax Metrotech Transmitter Signal Clamps allow the user to apply a signal to a pipe or cable. This is useful when it is not possible or convenient to use the direct connection leads. If there is room to place the clamp around the pipe or cable, then this clamp can help make a direct connection. In most cases clamps are designed to be used at frequencies generally between 8kHz and 83.1kHz.

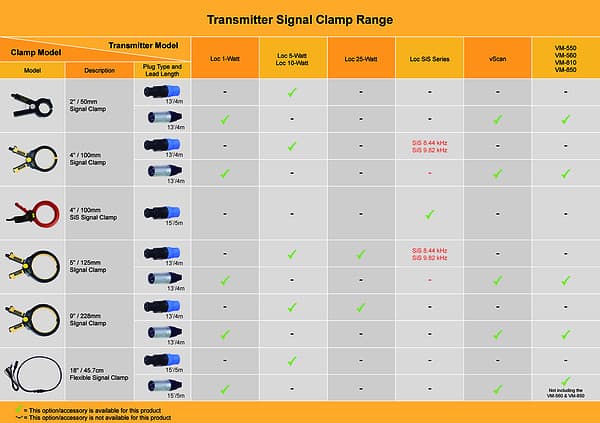

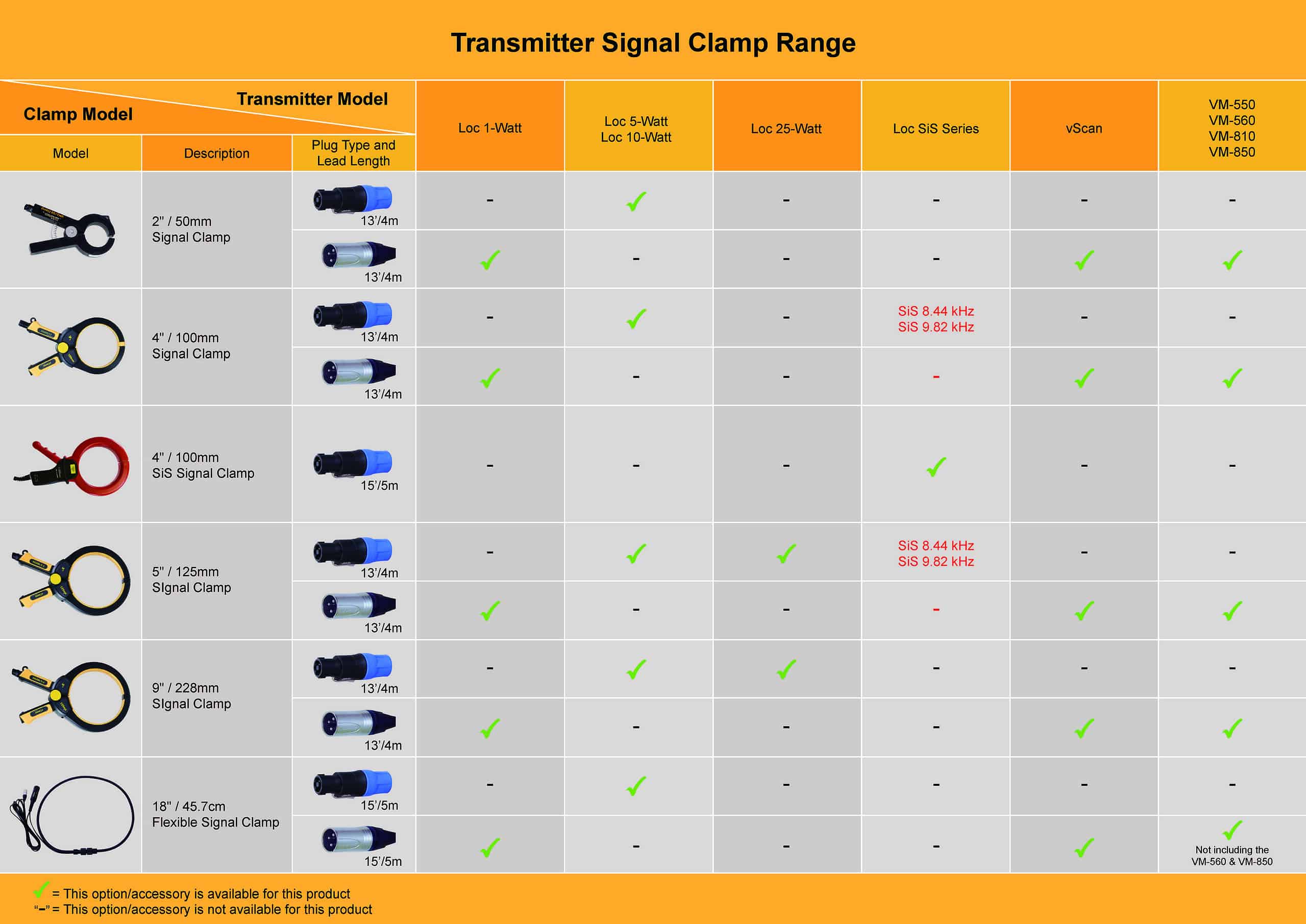

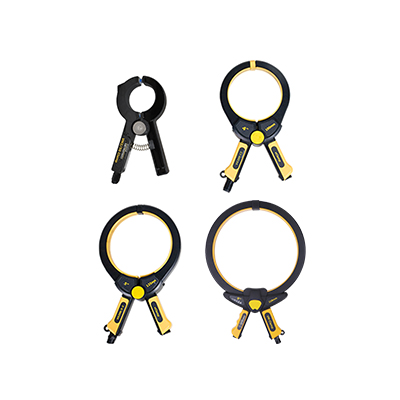

The Signal Clamps has a 2″, 4″, 5″, or 9″ diameter and is the most popular model for underground power cable induction. You can see a chart here of a comparison of the different Vivax Metrotech clamp sizes: Transmitter Clamp Chart. Give us a call if you need help identifying the correct item.
