vCamMX-2 Mini Camera System Overview:

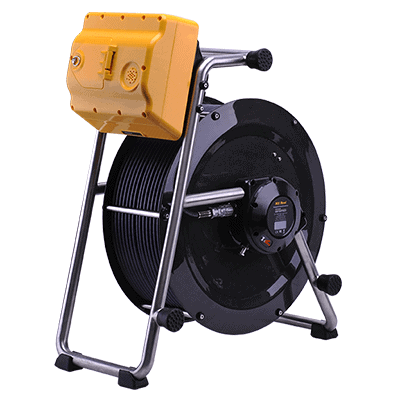

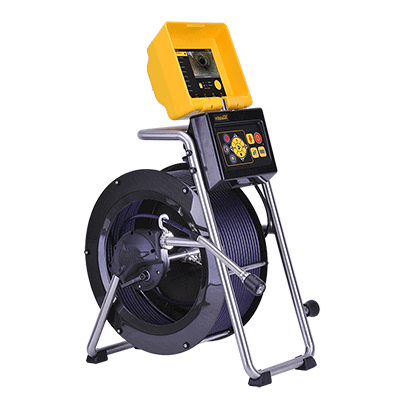

The Vivax Metrotech vCamMX-2 mini plumbing camera system gives you a versatile light-weight system on a rugged stainless steel frame which can be used in an upright or horizontal position.  Designed with this in mind to help inspect a variety of indoor drain lines, residential plumbing, indoor commercial lines, and lateral lines up to four inches in diameter.  The vCam MX pipe inspection camera’s rugged ABS housing and stainless-steel frame allow it to take a beating in the harsh environments.  A multi angle LCD allows the viewer to tilt the screen where needed for optimal viewing.  Ideal for tight spaces and rooftop uses.

The vCamMX-2 control module also features an Eight-inch daylight viewable LCD which can be used with gloves on and tilted for comfortable viewing. Your can change the two available cameras on the vCamMX mini plumbing camera system.  Because you are able to switch easily back in forth between the two camera sizes, you can inspect a variety of one to four inch lines.  In order to provide a customized system for each user, it is available in 100′ or 150′ 10mm pushrod lengths with a .7″ or 1″ full color camera head.  The pushrod is also traceable with the use of a utility transmitter and comes with a three frequency built-in locatable sonde.

vCam Connectivity:

When you download a free app, you stream the vCamMX-2 video from the control module and manipulate it.  In fact, the vCam Mobile Controller App allows you to stream video and write text that links directly to the control module.  Once the app is connected, you will see what is on the control module LCD duplicated on your tablet or smartphone.  Download the app for free from the Apple or Google Play stores.

vCamMX-2 Features:

  • Available with either 100, 150 or 200 feet of 10mm pushrod
  • Internal Microphone for audio recording over videos
  • Control Module has Eight-inch Daylight Viewable LCD with large controls for easier use by gloved hands
  • 2x Digital Zoom View Mode
  • One-touch recording
  • 5-watt 512Hz, 640Hz, and 33kHz Sonde
  • Locatable 3 frequency sonde and traceable pushrod
  • D18-MX .70″ or D26-MX 1″ Self-Leveling Pipe Inspection Camera

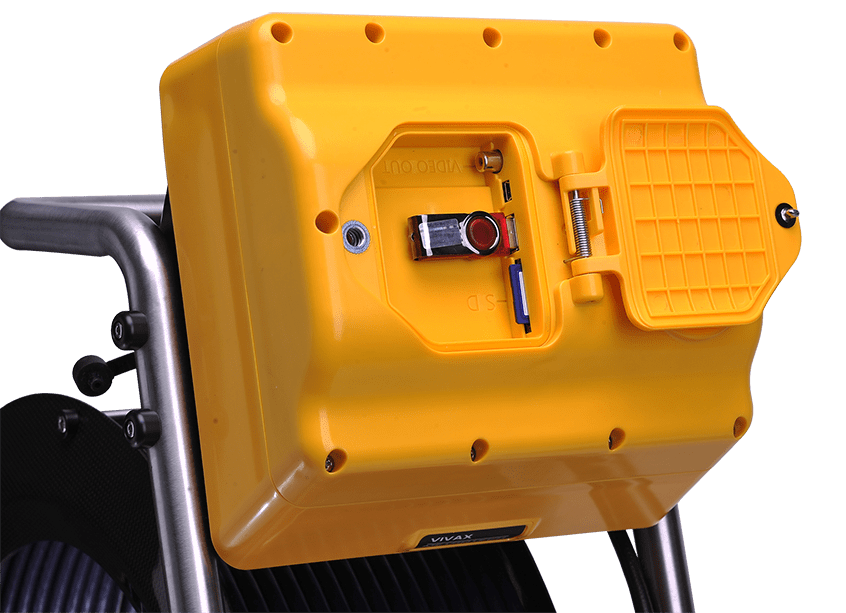

  • Media Compartment Uses up to a 128GB USB drive and SD Card, Mini-USB port for video out with OSD
  • Wifi Enabled with 30′ range
  • vCamMX-2 Smartphone/ Tablet App for video streaming, image capturing and texting or emailing still images
  • AC/DC System with rechargeable battery, provides over 7 hours of battery life
