vLoc3 Accessory A-Frame


Ships to TX Only

View More Accessories

Product Description

vLoc3 Accessory A-Frame Overview:

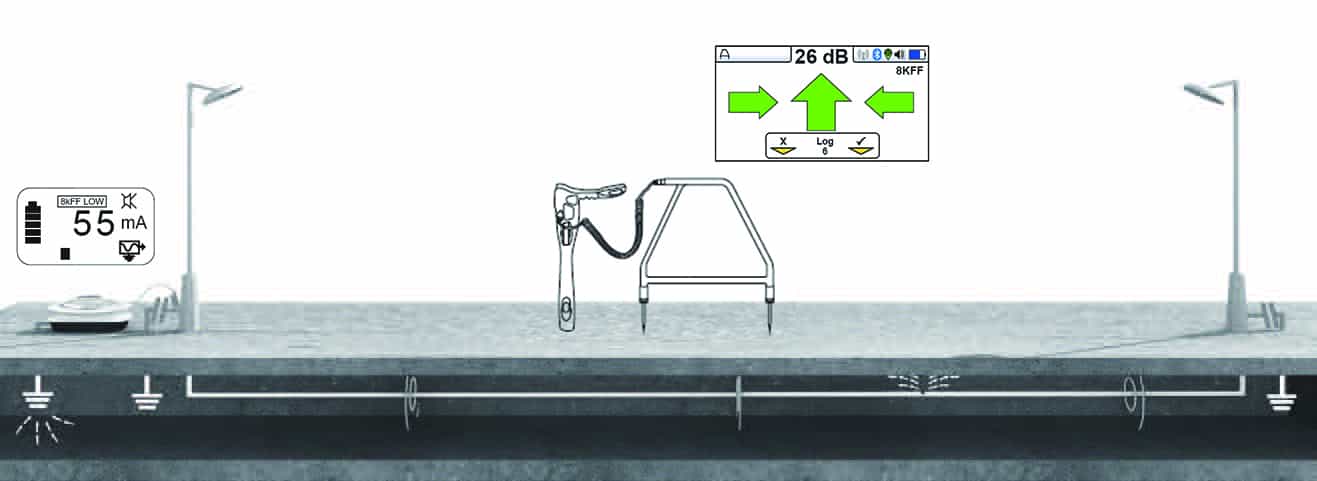

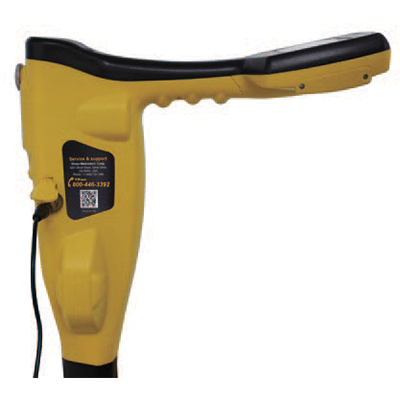

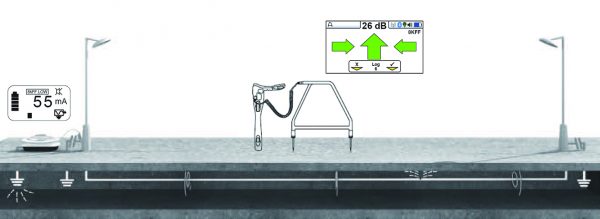

The Vivax Metrotech vLoc3 Accessory A-Frame accessory is used to detect ground faults on pipes and cables. In the case of pipes, the faults consist of coating defects. Insulation damage on a cable allows the metallic sheath (or internal conductor) to come in contact with the ground.  In order to find a fault, you will plug the A-Frame into your receiver using the provided lead.  Then if you turn on the receiver it will automatically open the A-Frame screen.  Model Number: VX219-04

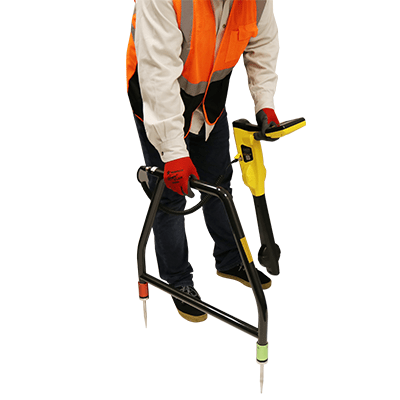

As far as compatibility is concerned, you can use the vLoc3 Accessory A-Frame with the vLoc3 series range of locators and fault-find enabled transmitters.  You apply the signal to the damaged pipe or cable with a Vivax-Metrotech transmitter and pick up that signal with a receiver.  The following receivers will work with this A-Frame: vLoc3-DM, vLoc3-Pro, vLoc3-5000, vLoc3-9800, vLocPro2, vLoc3-ML.  The vLoc3 Accessory A-Frame will also work with either of the 5, 10, 25 and 150-watt transmitters.  Feel free to give us a call if you need help determining the best set up.

  • Carbon fiber reinforced glass fiber construction
  • Plug-in-Play powered by receiver
  • Forward/backward arrows point to fault
  • Vivax Metrotech Model Number: VX219-04
