vLoc3-Cam Sonde & Camera Locator Overview:

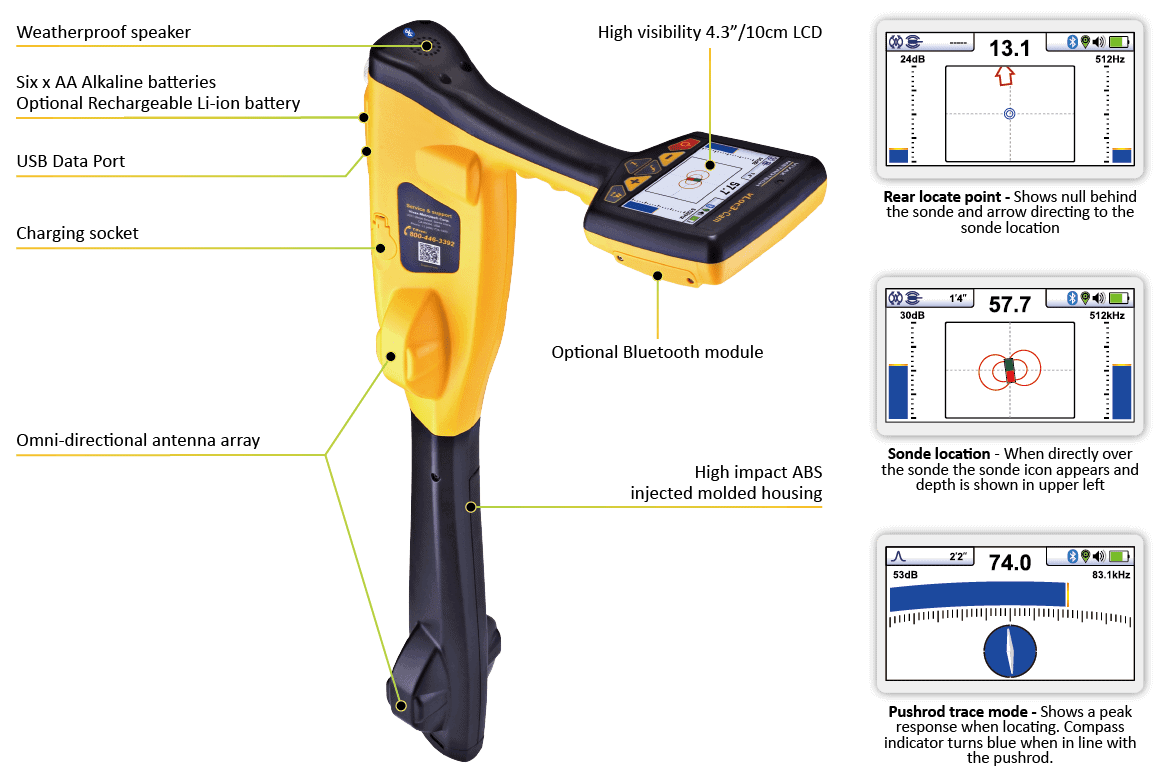

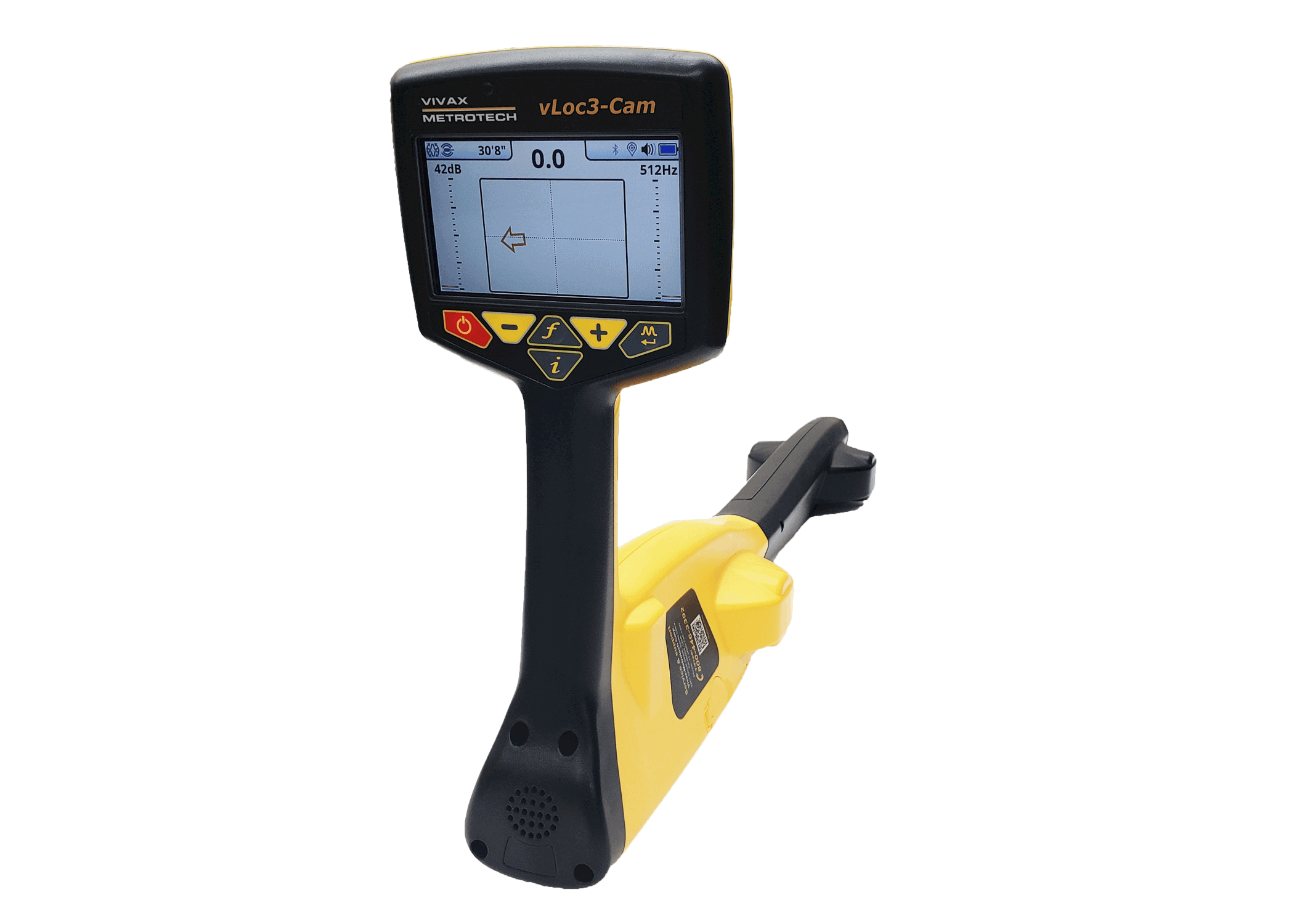

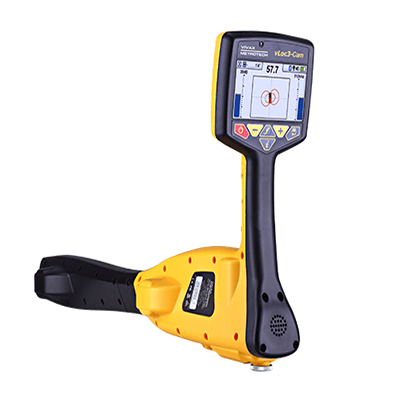

The vLoc3-Cam Sonde & Camera Locator by Vivax-Metrotech provides an updated, extraordinarily simple to use sonde locator which allows the user to approach the sonde from any direction. Displayed data on the bright color LCD display is simple to decipher with arrows and a picture of a sonde. Because of this, the user can easily and accurately follow the picture on the screen to find the location and depth of the sonde or camera. The vLoc3-Cam sonde locator provides this impressive new technology with its two sets of 3D antennas, giving consistently accurate results. Despite these robust features, it provides the simplest interface available on the market.
The vLoc3-Cam Sonde & Camera Locator comes equipped with two Passive locate modes of Power and Radio which will detect the presence of live power lines, CATV, telephone and some metallic pipes which radiate 50/ 60Hz from nearby or overhead power lines. In addition, the vLoc3-Cam provides multiple sonde frequencies to make it compatible with the major push cameras and crawler cameras on the market. It works well with the vCam-6 Camera Inspection Systems, as well as the vCamMX-2 systems. The vLoc3-Cam provides a step up in functionality from the popular VM-540 sonde and camera locator. Model Number: VX225-01
vLoc3-Cam Upgrades and Customizations:
With the use of a portable transmitter, the vLoc3-Cam can also be used with an 83.1kHz frequency for tracing the path of the pushrod. This frequency is also ideal for water and gas utilities which generally are larger pipes with bell housings and gaskets. In addition, the vLoc3-Cam works well to locate ungrounded small diameter drop wires.

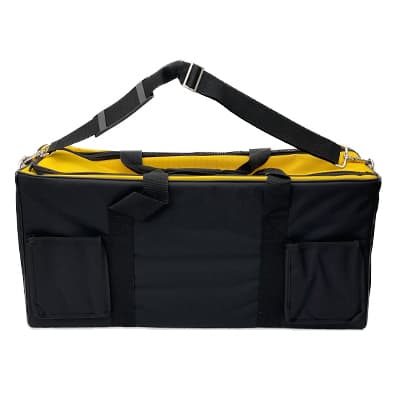

If you decide to add a transmitter, you can also pack the receiver and transmitter in the new vLoc3 Series Utility Locator Backpack.
- No ghost signals
- Graphical locate display
- Sonde Locate and Pushrod Trace modes
- Optional Bluetooth option for GPS mapping
- High visibility color 4.3″/ 10cm Display
- Model Number: VX225-01
