vLoc3-MLA


$980.00

Ships to TX Only

View More Accessories

Product Description

vLoc3-MLA Overview:

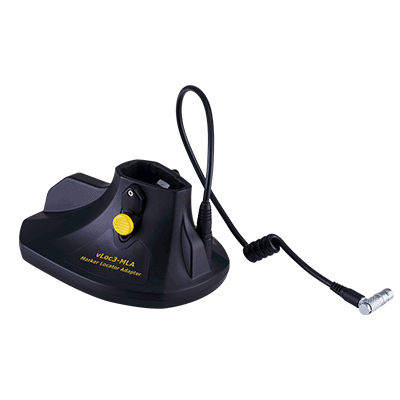

The vLoc3-MLA (Marker Locator Adapter) is designed for easy, fast and accurate location of buried EMS markers.  Once located the MLA will give depth of cover to the buried marker with the touch of a button.

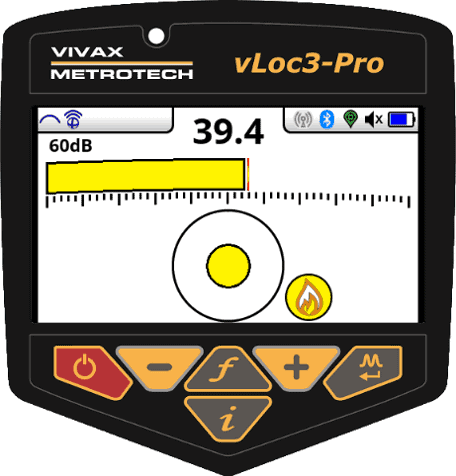

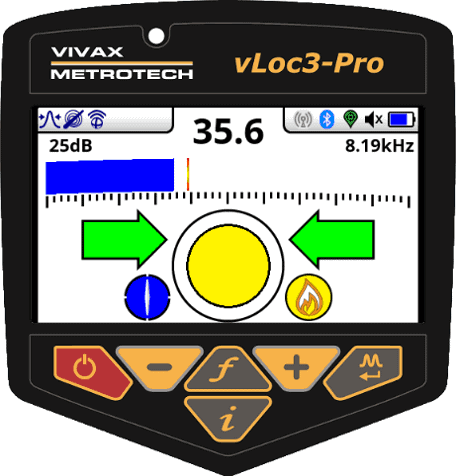

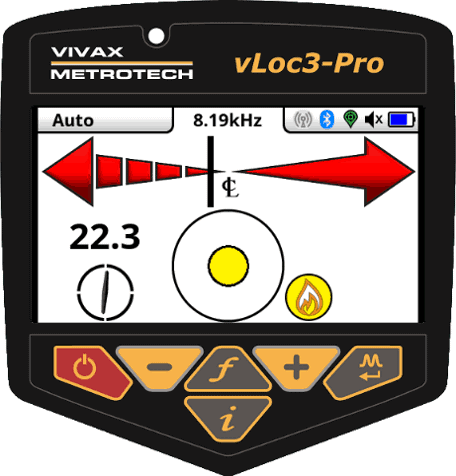

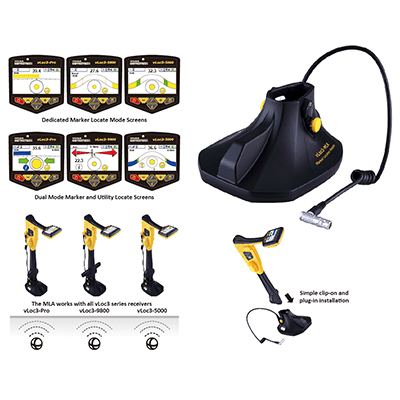

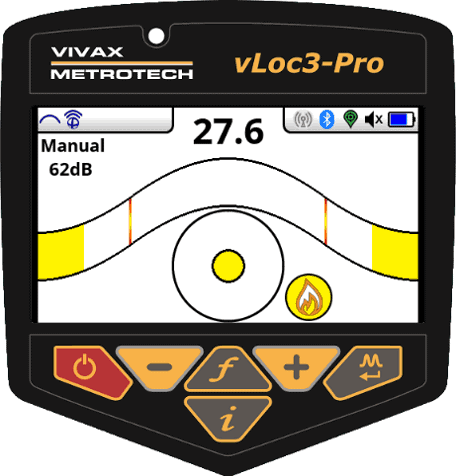

The vLoc3-MLA attaches to the bottom of the vLoc3-Pro, vLoc3-9800 and vLoc3-5000 Receivers.  Once the user attaches the adapter to a receiver, two marker related operating modes are enabled.  The first mode, the Dedicated Marker Mode, enables the receiver screen to show a peak bar graph with signal strength from the marker, as well as the marker type and depth.  The second mode, the Dual Marker Mode, gives the receiver the ability to show all of the dedicated marker mode screens, while also showing the standard utility locate screen including left/ right arrows and compass.

In good conditions, the vLoc3-MLA will detect any one of nine marker types buried to a depth of 6 feet and large flat markers to 9 feet.  Model Number: VX220-02

Marker Locator Adapter Features:

  • Gives depth of cover reading to the marker
  • Plug-and-Play automatic recognition by the receiver
  • Flexibility – use when needed, no need for two different receivers
  • Locates balls, disks, full-range & near surface markers
  • Use as dedicated marker locator or as dual utility and marker locator
  • Model Number: VX220-02
