VM-810 Metrotech Utility Line Locator
Download technical docs:
$3,565.00
Ships to TX Only
Related Accessories
Product Description

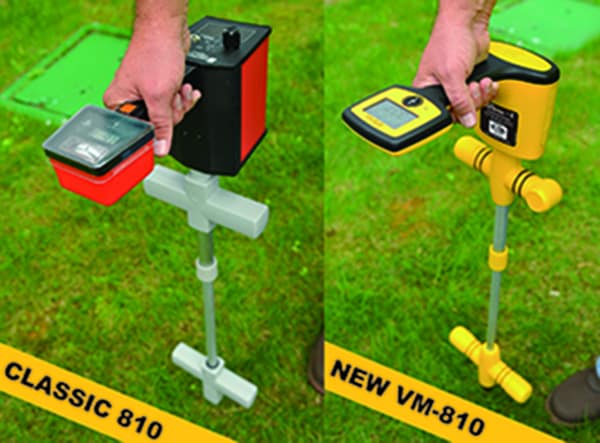

The VM-810 by Vivax-Metrotech, often called the “Metrotech 810”, is the line locator of choice for many Customers around the world. Metrotech has been producing the well-tried and tested locator for over forty years. The Metrotech 810 was engineered to provide accurate, easy locating.
Larger pipes and bell housing or gaskets can be located using the VM-810’s single higher 83.1kHz frequency. This frequency is ideal for locating water and gas utilities and it is also good for locating under-ground small diameter drop wires. The VM-810 can also induce a signal through the soil onto services when direct connecting is not an option.

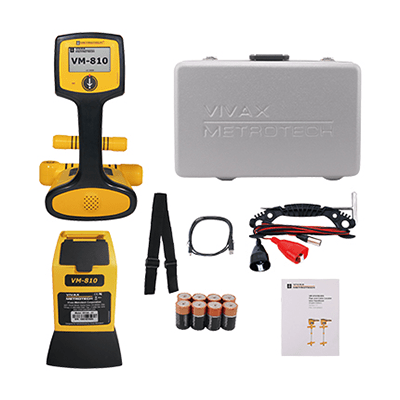

When you purchase the VM-810 Metrotech utility line locator, you get a complete kit with receiver, transmitter, direct connection leads, and hard case. You can also buy an optional Transmitter Induction Clamp which can put the transmitter signal directly onto a cable. A popular feature of the VM-810 is the Distance Sensitive Left/ Right Guidance™ feature, which enables the locator to find which antenna is receiving the strongest signal. Once found, it displays arrows on the screen, indicating which direction the user should move in order to be over the buried line. The arrow guidance and push-button simplicity create a user-friendly utility locator that is very popular in the industry. Model Number: VX213-01, VX-213-02 (receiver, transmitter)
VM-810 Features:
- Large Keypad with One Button Operation
- Induction, Direct Connect, and Clamp modes
- Distance Sensitive Left/Right GuidanceTM
- Compass indicator and sonde modes
- Fast Response
- Depth and current readout
- Light and durable
- Model Number: VX213-01, VX-213-02 (receiver, transmitter)
