Product Description

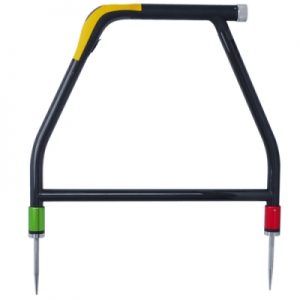

The Vivax-Metrotech VM-510FFL+ standalone A-Frame is the all new standalone secondary cable & pipe fault locator (Holiday Locator).  This new VM-510FFL Standalone A-Frame locator can easily find the location of an underground cable fault with a compatible transmitter.  There is no need for a separate utility locator with cables connecting to it.  After connecting a compatible transmitter to the line and placing it in a Fault-Find mode, use the simple four button controls to locate and stay on the cable path while pinpointing the sheath or ground fault.

The VM-510FFL+ will fault locate in 3/ 6Hz and 8kHz.  It has locate modes of peak and null, peak, and null displayed on a high contrast LCD with automatic backlight.  It also has locate modes for identifying your target pipe or cable.

The VM-510FFL+ works with Vivax-Metrotech’s Loc3-5Tx and Loc3-10Tx transmitters.  It runs using its own power supply of either alkaline or lithium batteries.


  • Depth of cover reading to cable
  • Lightweight design at just 4.2 pounds
  • Fully automatic operation
  • Audible Left/ Right cable path locate function
  • Detect up to 2MΩ ground faults
  • VM-510FFL+ can discriminate between light and heavy faults
  • Simultaneously locate both cable and fault
  • Forward/ Back directional arrows point to the fault
