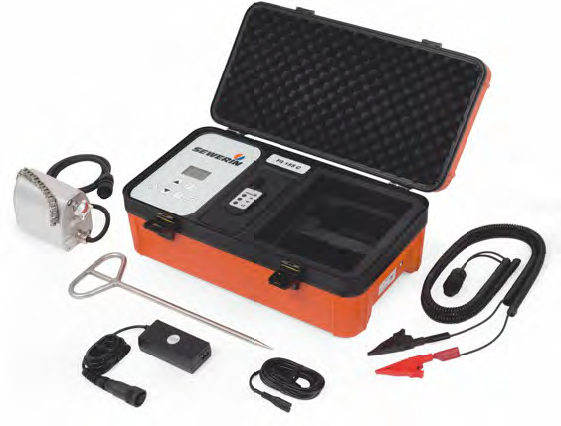

Sewerin FERROPHON FG 155 C Generator Overview:
The FG 155 C generator can be used to locate pipes using electromagnetic and acoustic methods.
It can be used to directly or indirectly energize electro-conductive pipes. With an output of up to 50 W, it is ideal for extreme locating ranges. Thanks to the strong performance parameters, the FG 155 C generator perfectly complements all receivers from the UT 9200/9100/930, FERROPHON® and UtiliTrac systems.
To locate plastic pipes acoustically, the generator controls an oscillator in the COMBIPHON® system or optionally the tapper or stopper. Pipes that are made to vibrate by the Striker or Stopper can then be located with the help of a receiver and ground microphone. For this task combining the AQUAPHON® A 200 receiver, TS 200 carrying rod und BM 200 or BM 230 ground microphone is recommended.
The benefits of the FERROPHON® FG 155 C
- Direct or indirect energizing of electrically inductive pipes
- Acoustic localization of plastic pipes using Strikers/Stoppers
- Powerful generator with up to 10 W output power
- Ten preset frequencies (512 Hz – 116 kHz)
- Five individual frequencies adjustable (200 Hz – 116 kHz)
- Remote controllable
- Suitable for the receivers of the systems AQUAPHON®, FERROPHON®, UtiliTrac and UT 9200/9100/930
This Product includes
- FERROPHON® FG 155 C
- 12V AC/DC Adapter
- 12V Car Connection Cable
Some of the Receivers that can be used the the Transmitter function include:
