Model Number: VX219-01

View More Accessories

Product Description

vLoc3-Pro Overview:

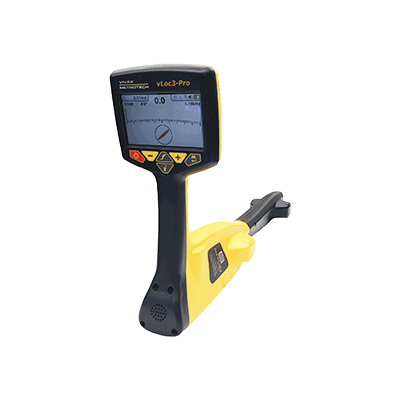

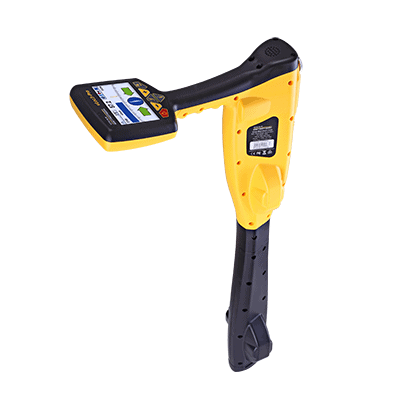

The vLoc3-Pro by Vivax-Metrotech is a vLoc3 series utility line locator that uses two sets of screened 3D antennas which allows it to easily detect buried utilities and prevent damage. Additionally, these antennas allow the vLoc3-Pro to easily detect signal distortion and offer new locate perspectives which are displayed on a bright new 4.3″ full-color display.  The vLoc3-Pro works with the user to detect damage and gather information about the utility for further analysis.  Model Number VX219-01

vLoc3-Pro Standard Features:

  • Two sets of 3D Triaxial antennas
  • Continuous depth correction
  • Color-coded EM distortion warnings
  • Vibration alerts for user feedback and warnings, customizable

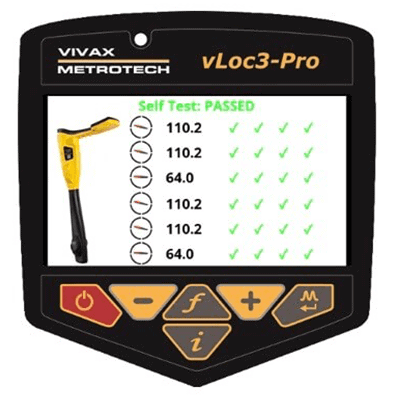

  • Self-Test Calibration
  • Distortion Alert
  • Ultra Bright LCD – viewable even with polarized sunglasses
  • Built-in data logging for 50 million records
  • Multiple Locate Modes (see below)
  • Wide range of configurable frequencies (98Hz to 200kHz)
  • IP65 and NEMA 4 rating
  • Rugged ABS construction
  • 4.6 pounds for lightweight and ease of carry

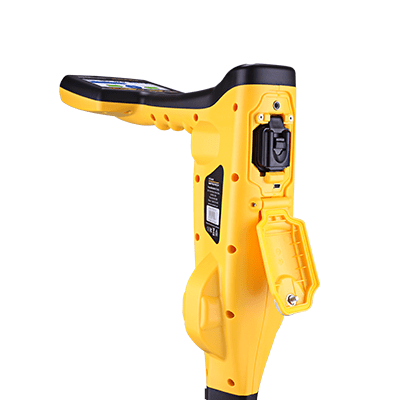

  • Li-Ion Rechargeable Battery Standard
  • Available VM-MAP smartphone app for real-time maps (using external GPS)
  • Model Number VX219-01

vLoc3 Series Locate Modes:

Vivax also upgraded several features on the vLoc3-Pro compared to the previous model, the vLocPro2.  Besides the Classic Locate Mode, this Vivax Metrotech locator offers several other new locate perspectives to help the user.

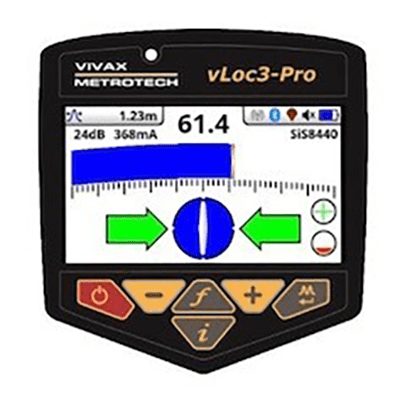

  • Classic Locate Mode: The original locate mode with new distortion alert levels.

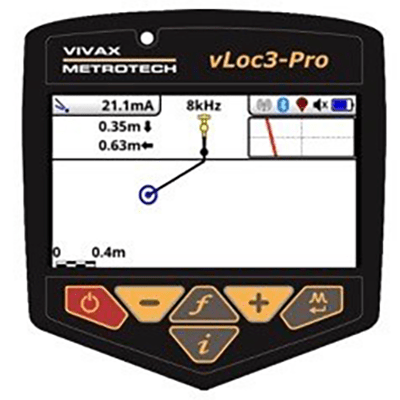

  • Vector Mode: With this mode you can walk beside the line instead of on top of it.  Useful for high traffic areas and places with a fence or obstacle in the way.

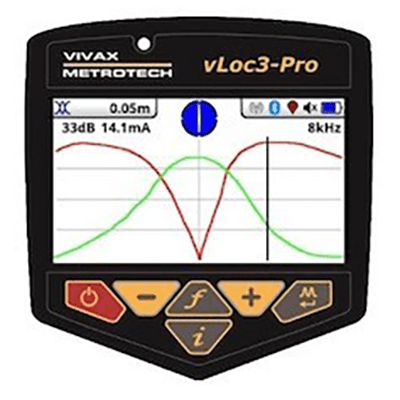

  • Transverse Graph Mode: shows both peak and null at the same time.

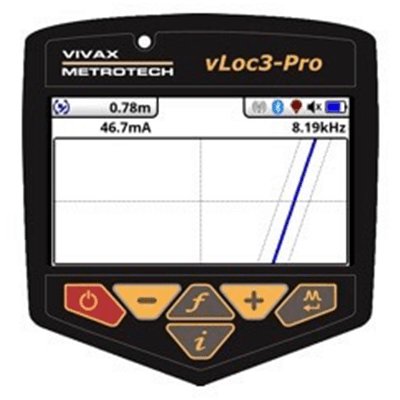

  • Plan View Mode:  shows the relative orientation of the cable at any angle.

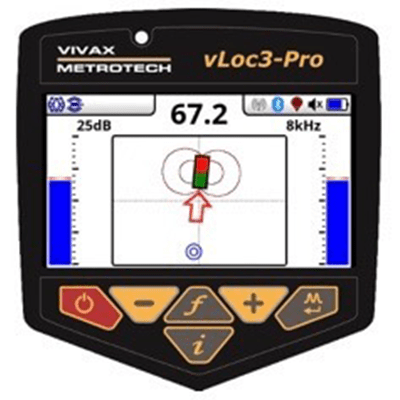

  • Sonde Mode: graphical Sonde screen with guidance arrows. Follow the picture of the sonde!

The Vivax Metrotech vLoc3-Pro receiver also offers SD (showing direction of outgoing current), fault-find mode, the eight passive locate modes listed above, and a range of configurable frequencies from 16Hz to 200kHz.  Audio and mechanical vibration alerts can also be configured to provide warnings for shallow depth, overload, overhead cables, and excessive swinging.

Available Upgrades and Customizations:

When you purchase the vLoc3-Pro, you can customize the receiver together with a number of different utility locator transmitters to create a complete kit.  To that end, the Vivax Metrotech Loc3 series transmitters are typically paired with this receiver.  For even more customization, an optional Bluetooth Module can be added to the vLoc3-Pro for use with external GPS devices and EMS foot used to locate buried markers.

Call us if you have any questions about these or other customizations.
